I don't like connectors that require pcb edge changes, cause I can't save that into the footprint clearly and will always require secondary operation after bringing parts in from the schematic.
3
19
1,019
What is the highest layer count PCB you have worked ont?
6
33
1,845

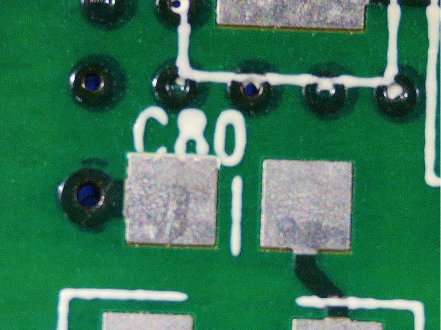

Flood your vias over. It doesn't make any sense to use thermal relief wagon wheels on vias. just stop it. In this pcb you see them flooded on one layer and wagon wheeled on the other 🫣
3
23
1,105

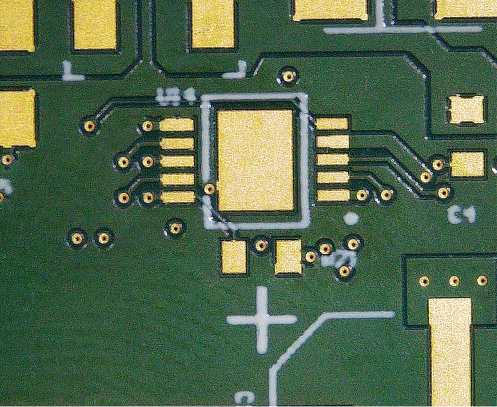

I don't know how needs to hear this, but that big pad in the middle of your IC is a thermal relief pad. I should be tied to your ground but not for electric connection. The purpose is to pull the head away from your chip, add multiple vias in this area to act as a heat sink
6
2
49
2,424

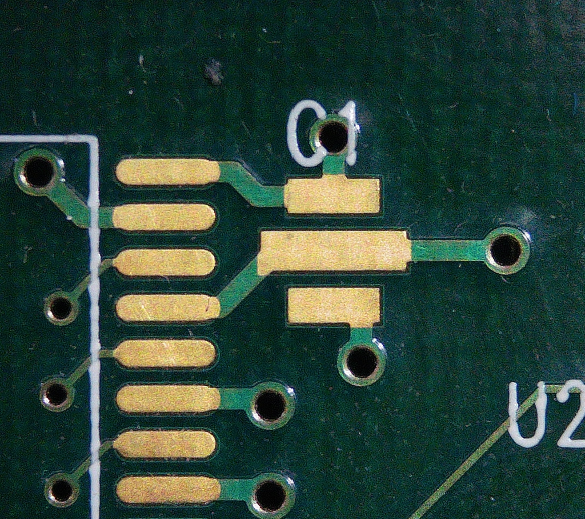

This is my favorite fan out pattern for fine pitch pins
1
17
740

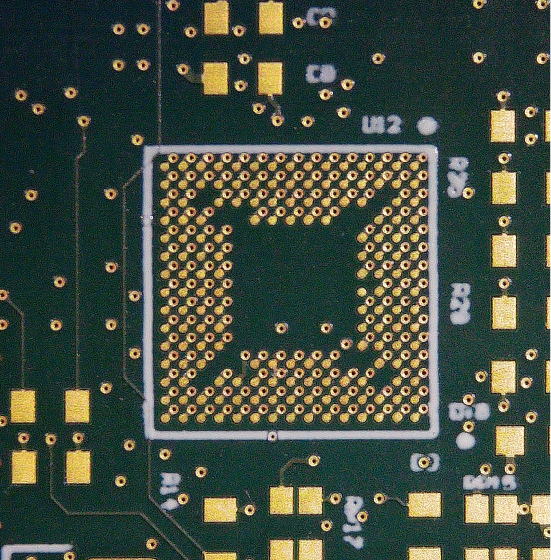

This BGA would be a nightmare to install, remember to tent your vias guys.
9
80
3,663

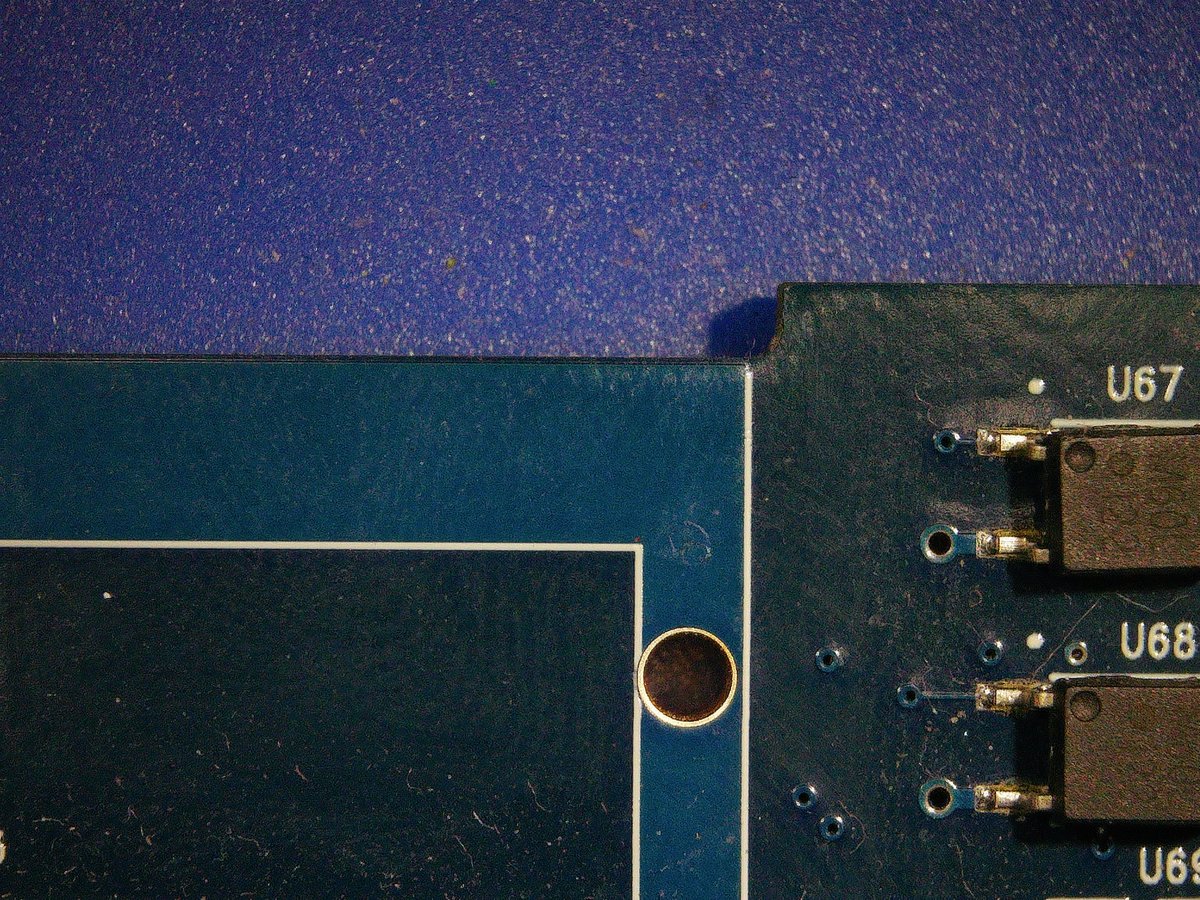

Offset silkscreen getting on top of your PADS is NOT good
3
20
1,648
Ask your PCB manufacturer to provide you their scraped pcb of your boards as solder samples. Solder samples are useful for thermal profiling test runs.
1
30
1,263
Ever used one of these 3 pin ceramic caps?
5
27
2,401

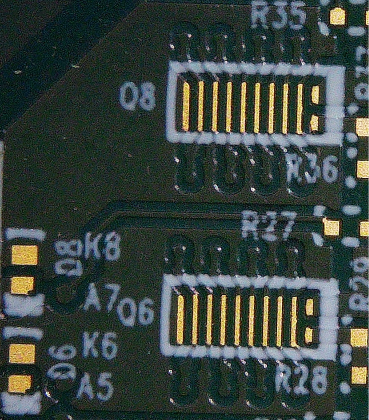

These power switching footprints are so annoying! They are this way for a reason, but implementing the interface between the PCB and the chip is annoying in design, and I remember them not wanting to set down consistently during assembly.
3
1
23
1,105
Who uses octagonal pads on their PCBs?
17
2
110
6,262
